WATCHPAX 4

Compact and powerful 4 x 4K WATCHOUT Media Server

WATCHPAX 4 features a high-performance four-channel output configuration housed in a compact, rack-mountable case. The unit offers four times UHD (4K) playback.

Powerful and portable

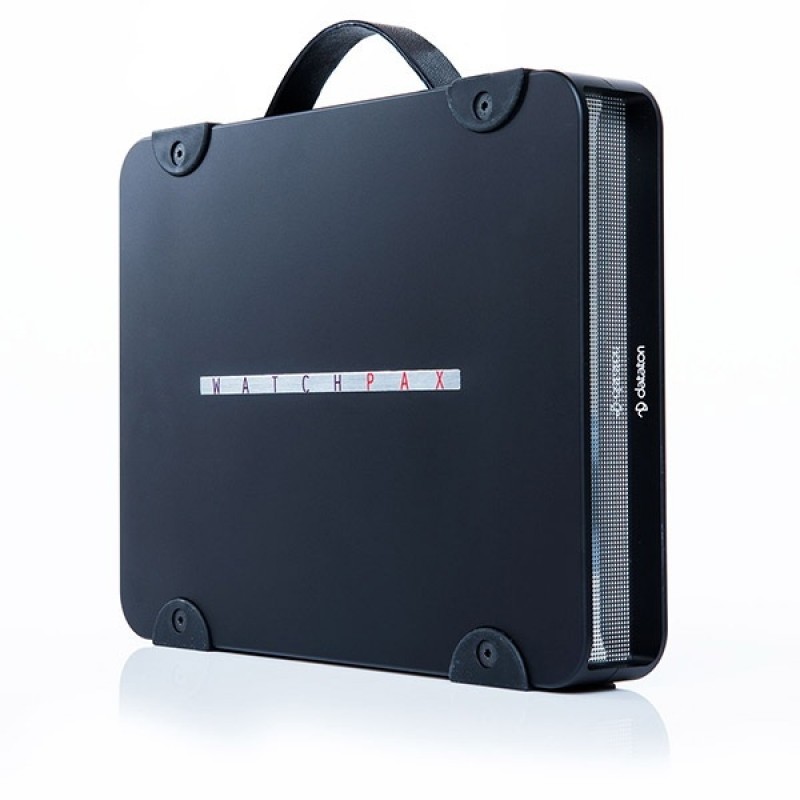

WATCHPAX 4 is a dedicated media player with four DisplayPort outputs and built-in WATCHOUT license. Sturdy and stackable, WATCHPAX 4 houses the latest graphics technology and is designed solely with WATCHOUT in mind. The locked-down unit is ready to be used in your rig, straight out-of-the-box. WATCHPAX 4 is compact, weighing just 3 kg and with a neat A4-size footprint. Other practical details include a strap handle for hand-carrying, rubber bumpers and Kensington security slot.

Performance

Manage and control WATCHPAX media servers or WATCHOUT systems, as well as power, lighting

• Built-in WATCHOUT license
• Outputs - 4 x 4K (UHD) playback, DisplayPort 1.2
• Industrial-grade components, optimized for WATCHOUT
• Media storage – 1 TB (1 GB/second) for fast playback of large files
• Network – 1 Gb Ethernet for high-speed transfer of content
• Optional 4K video capture and multi-channel audio (2 x USB3 for flexibility)
• Audio output – 3.5 mm stereo
• Window Embedded

Download the product sheet for more details.

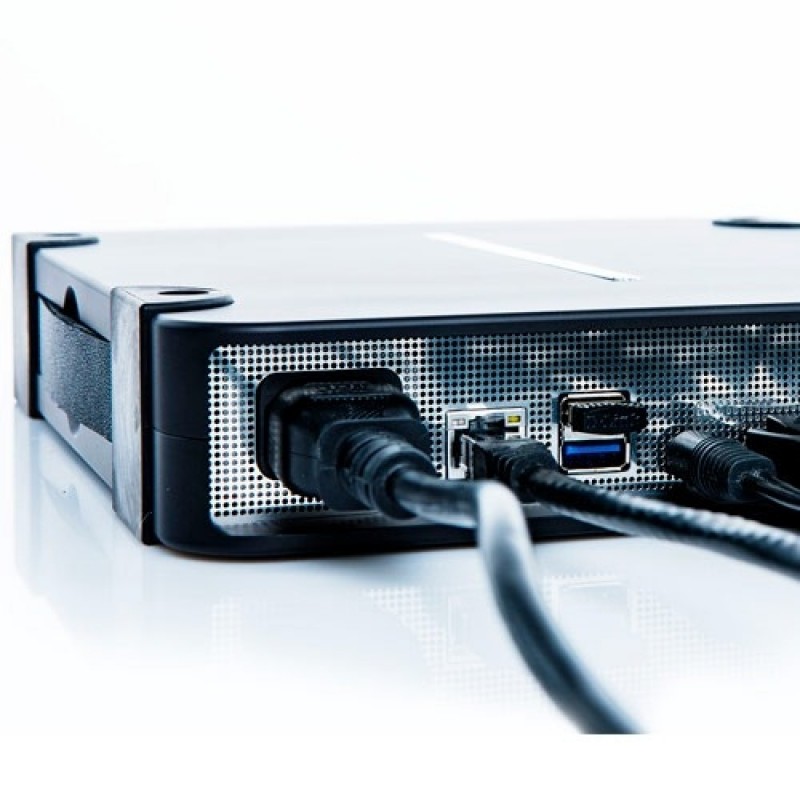

Installation

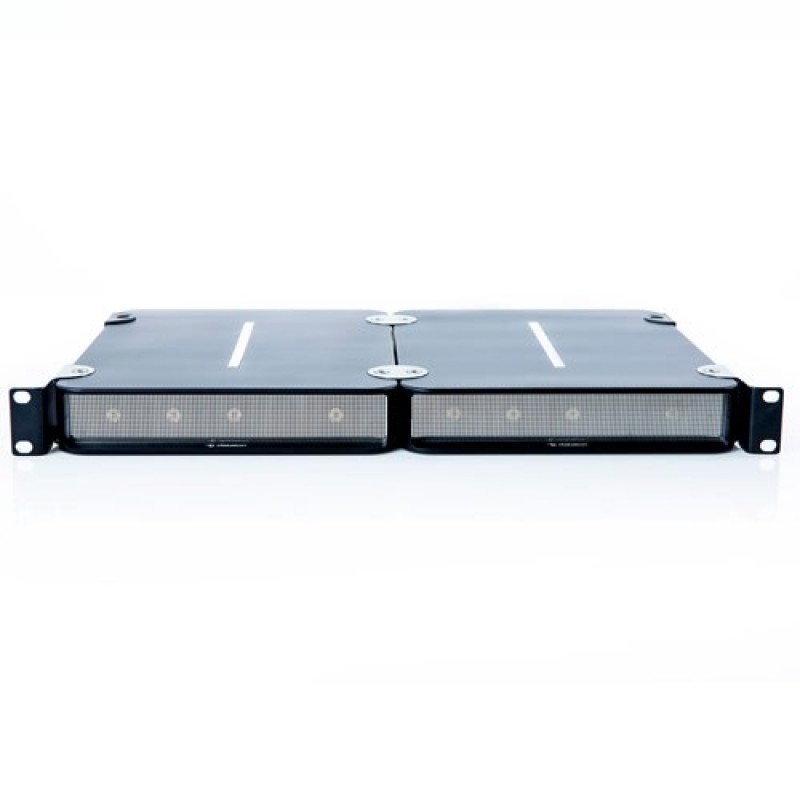

• Connect two units for 19-inch rack installation*
• Stackable
• Quad fans for cooling
• Kensington security slot
• Clean shutdown and power up – IEC C14 input
• Powers up and launches WATCHOUT automatically after power cut
• Locked-down unit

* Rack kit sold separately

Footprint

• Width 214 mm, height 43 mm (1U), depth 276 mm
• Light, just  2950
• Discreet, sleek look – locate it close to displays and avoid long cable runs
• Robust aluminium housing
• Portable (strap for carrying by hand)
• Removable rubber bumpers

Feature

WATCHPAX 4

SOFTWARE

WATCHOUT

Included

Operating System

Win 7 Embedded

HARDWARE

Max output resolution per channel

4096 x 2160

Output channels

4 x DisplayPort 1.2a

Capture

USB (3d party component required)

OS Disk

Same as storage

Media Storage Included

1 x 1TB SSD (1Gb/sec) (973 GB for media)

Audio Output

1 x 3.5 mm stereo audio out

USB

2 x USB 3.0

Art-Net ethernet) In/Out

Yes

Timecode

Yes, Through 3.5mm audio

INSTALLATION

Size

214 x 276 x 43 mm

Weight

2,95 kg

Kensington security slot

Yes

Rack mount kit

Yes
