WATCHPAX 20

WATCHOUT MEDIA SERVER

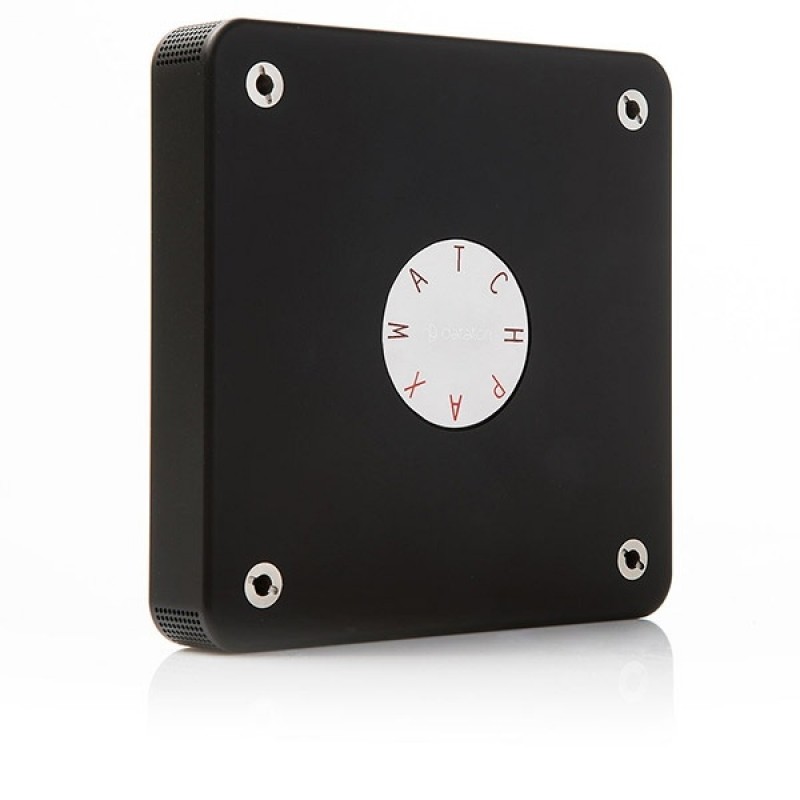

WATCHPAX 20 is fully plug-and-play media server with a pocket-size footprint, that makes it easy to mount close to displays as well as transport at shows. It ships with a full WATCHOUT license built in. For secure and smooth installation, WATCHPAX 20 is VESA compatible with a Kensington security slot.

Pocket sized  4K media server

WATCHPAX 20 combine a compact footprint with great performance. WATCHPAX 20 features two Mini DisplayPort video outputs.

Measuring just 127 x 127 x 23 mm, the unit is small enough to fit in your pocket as well as sit right next to a display, keeping the hardware close to the display source and cable lengths short. It’s ideal for installations where space is tight, or when you need an easily portable system. Each WATCHPAX 20 drives up to two displays. Multiple players may be used in installs.

• Plug and play – fast and easy to install
• Low power consumption
• Clean shutdown and power-up
• Locked-down unit
• Robust aluminum housing
• Extremely portable and easy to transport

Download the product sheet for more details.

FEATURES & SPECIFICATIONS



FEATURE

WATCHPAX 20

SOFTWARE

WATCHOUT

Included

HARDWARE

Max output resolution per channel

Up to 4096 x 2160

Video playback

Up to 4K per channel*

Output channels

2 x Mini-DisplayPort

Capture

Newtek NDI and USB (3rd party component required)**


OS Disk

Same as storage

Media Storage Included

256 GB SSD (220 GB for media)

Audio Output

1 x 3.5 mm stereo audio out

USB

1 x USB-C

Art-Net ethernet) In/Out

Yes

Timecode

Yes, Through 3.5mm audio

INSTALLATION

Size

127 x 127 x 23 mm

Weight

0,450 kg

Kensington security slot

Yes

* Video playback depends on video quality, encoding, frame rates and number of effects added. 2 x 4K playback is possible with HAP in 25fps (without tweens or geometry correction).
** Additional adapters might be required to convert to USB-C
