Media server
WATCHPAX 62
Overview
WATCHPAX 62

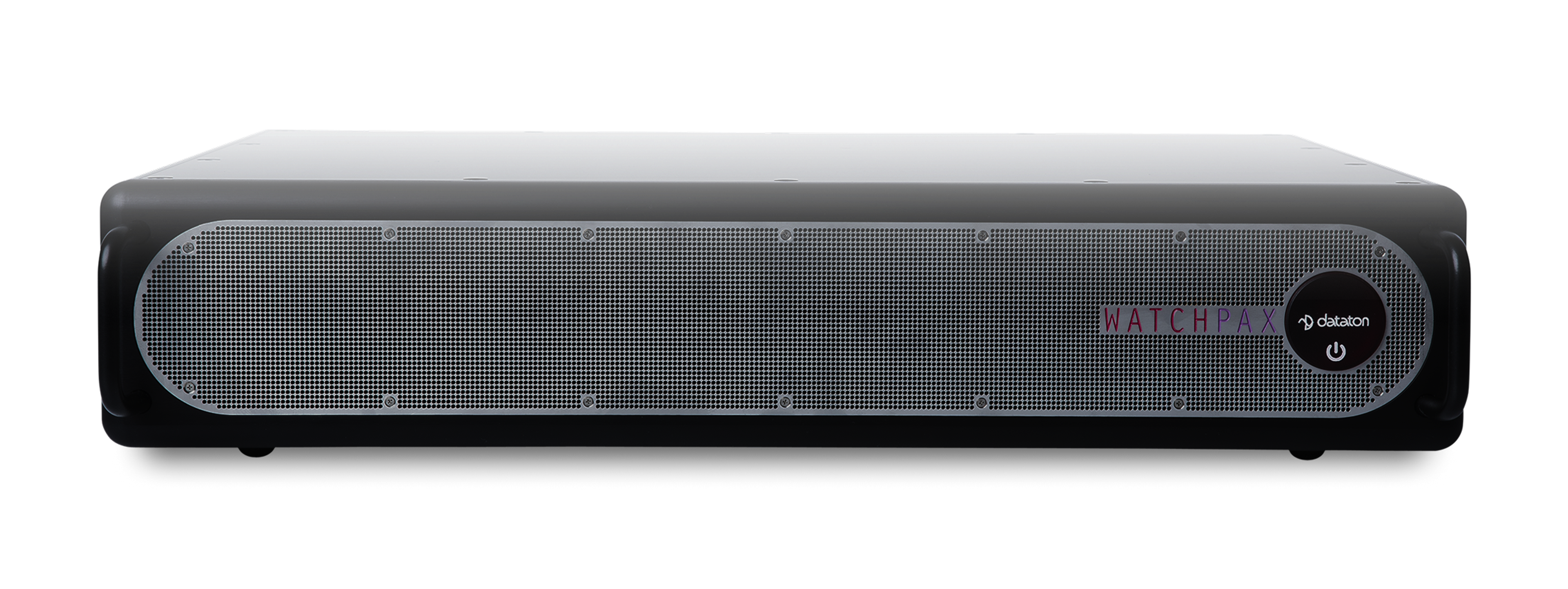

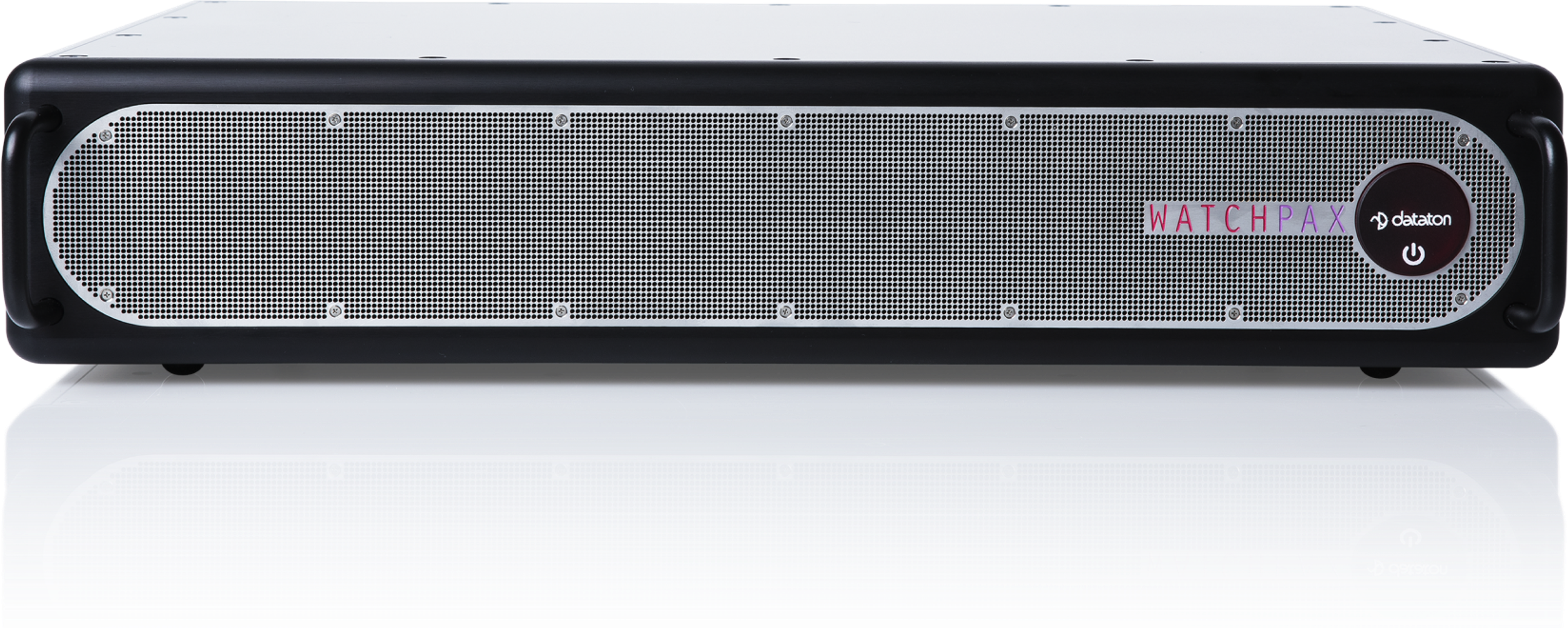

WATCHPAX 62 is the successor to the popular WATCHPAX 60 series. This media server series combines the same elegant exterior with a fully updated tech-spec to pack an even more powerful punch!
Key features
Features
0
Gb/s network ports*
0
4K DisplayPort outputs
0
USB (2 x 2.0, 2 x 3.2) ports
Model S
- 1.9 TB high-performance SSD
Model A
- 3.8 TB high-performance SSD
- SSD options: 7.6, 15.3 TB
- Two HDMI 2.0 inputs (up to 4K capture)
- Audio: Two-channels in, two-channels out, analog or digital**
- XLR** SMPTE timecode input
Model B
- 3.8 TB high-performance SSD
- SSD options: 7.6, 15.3 TB
- Two HDMI 2.0 inputs (up to 4K capture)
- Audio: Two-channels in, two-channels out, analog or digital**
- XLR** SMPTE timecode input
- Hardware synchronization
Model C
- 3.8 TB high-performance SSD
- SSD options: 7.6, 15.3 TB
- Two HDMI 2.0 inputs (up to 4K capture)
- Audio: Two-channels in, two-channels out, analog or digital**
- XLR** SMPTE timecode input
- Hardware synchronization
- Eight-channel bi-directional SDI
In the venue
- Tabletop, rack-mount, stackable
- Smart auto-reset solution
- Locked-down unit
- Kensington security slot to discourage theft
- Rack mount kit available separately
- User-replaceable air filter
Footprint
- Unit dimensions: w 446 mm (17.6 in), h 88 mm (3.5 in), d 336 mm (13.2 in)
- Weight, 10 kg (approx. 22 lbs)
- Rugged, quality aluminum housing
Inspiration
WATCHOUT around the world
In depth
* Bi-directional, can be used either as output or input (2 x 12G-SDI or 8 x 3G SDI or 1 x 12G SDI and 4 x 3G SDI)
** Two channels in, two channels out, analog or digital
*** Dual ports with one reserved for future use
Specifications subject to change without notice
