WATCHOUT MEDIA SERVER

A plug-and-play media server series that exceeds the requirements of the toughest environments with POWER – in processing, performance and playback! It supports uncompressed 4K playback, features a dual power supply in three models and offers from 4 up to 12 outputs - including 8 channels of bi-directional SDI. Available in models S, A, B, C.

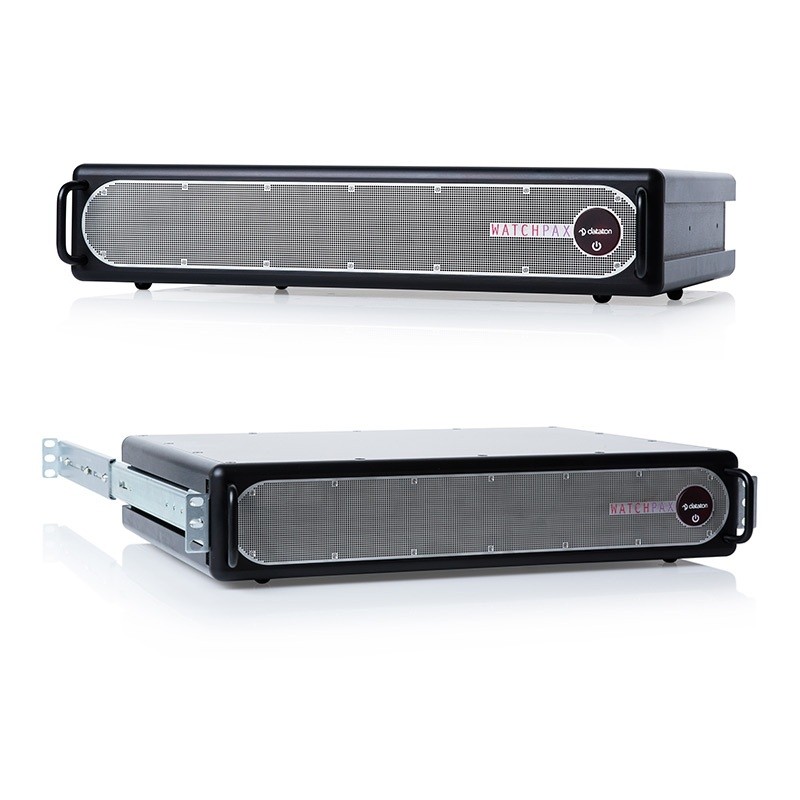

Watchpax 60 800X800

Power to perform

The WATCHPAX 60 series offers a compact form factor with sheer power in performance. With the latest technology under the hood, it is ideal for demanding applications such as live events, attractions and broadcast installations.

WATCHPAX 60 is available in four models offering from 4 to 12 output channels. Models A, B, C feature a dual power supply, HDMI and SDI input, balanced audio, 10 Gbit/s network port for high-speed content transfer, dual USB ports and 1.9 TB high performance SSD with 3.8 TB and 7.6 TB options. The latest addition, model S, features 4 output channels, 10 Gbit/s network port, dual USB ports and 1 TB high performance SSD.

All Dataton media servers have a built-in WATCHOUT license and are backed by a two-year warranty.

Download the product cutsheet here.

User guide collection.

Feature/Server table as image.

We're currently offering a special discount on our high-performance WATCHPAX 60 media server series. Visit our promo campaign page and register to get the best pricing!

Watchpax 60 promo campaign
Feature/ServerWATCHPAX 60 (4x4K)WATCHPAX 60 (4x4K)WATCHPAX 60
(4x4K Genlock)
WATCHPAX 60
(4x4K + 8xSDI)
Model/Part Number3368S 3368A 3368B 3368C
Embedded WATCHOUT licenseYes Yes Yes Yes
Output Channels4 x 4K 4 x 4K  4 x 4K  12 (4 x 4K, 8 x SDI*)
Connector Type4 x DP 1.4 4 x DP 1.4 4 x DP 1.4 4 x DP 1.4 & 2x12G or 8x3G
Fixed Input ChannelsN/A 1 x HDMI, 1x SDI 1 x HDMI, 1x SDI 1 x HDMI, 8 x SDI*
Optional Input ChannelsUSB only USB only USB only USB only
Audio

USB only

4 x XLR 4 x XLR 4 x XLR
NDI - Video over IP CaptureYes Yes Yes Yes
High-Speed StorageYes: 1.0TB Yes: 1.9TB, 3.8TB or 7.6TB Yes: 1.9TB, 3.8TB or 7.6TB Yes: 1.9TB, 3.8TB or 7.6TB
Data Throughput (Approx Numbers)3500 MB/s 6000 MB/s 6000 MB/s 6000 MB/s
External Sync/GenlockN/A N/A Included Included
Genlocked OutputsYes Yes Yes Yes

EDID management

YesYesYesYes
Timecode InYes (from external USB device) Yes Yes Yes
Ethernet

10 GB**

10 GB** 10 GB** 10 GB**
USB2 x USB 3.0 2 x USB 3.0 2 x USB 3.0 2 x USB 3.0
Redundant Power SupplyNo Yes Yes Yes
Warranty Included2 years 2 years 2 years 2 years
Extended Warranty Option At CostNo Yes, up to 5 years Yes, up to 5 years Yes, up to 5 years
XLR breakout cable includedN/AYesYesYes
DisplayPort adaptors includedNoYesYesYes

* Bi-directional, can be used either as output or input (2 x 12G-SDI or 8 x 3G SDI or 1 x 12G SDI and 4 x 3G SDI)
** Dual ports with one reserved for future use
